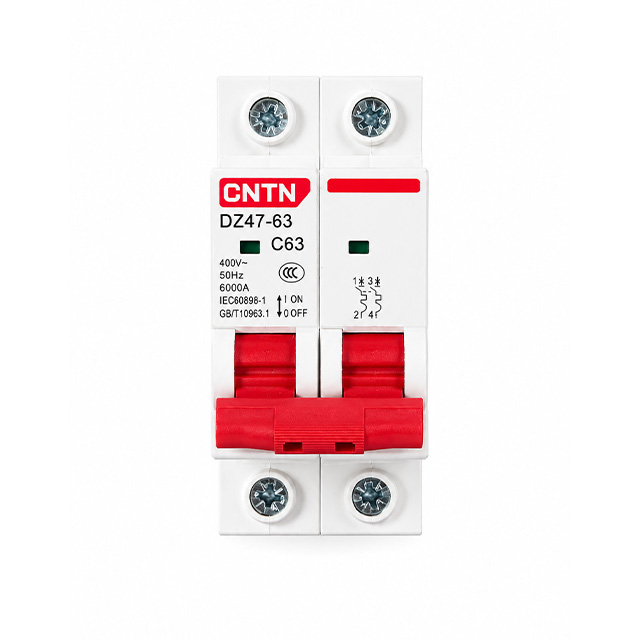

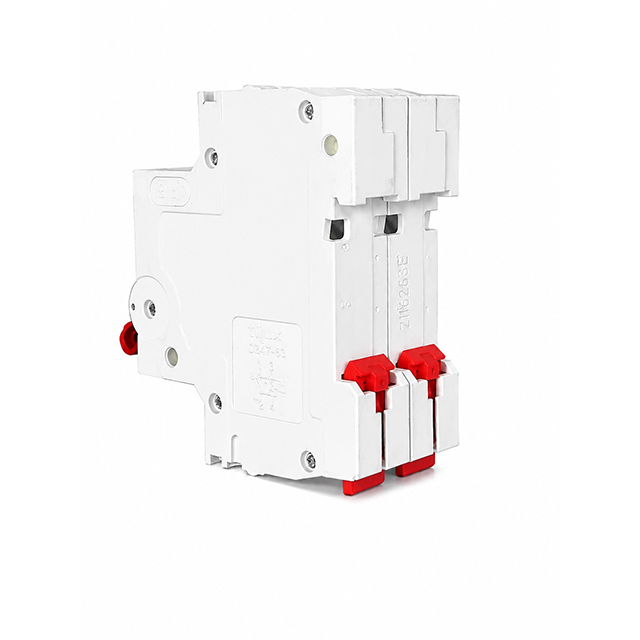

2 Pole 63A MCB DZ47-63

Introduction:

As a critical protective and control device within low-voltage small-scale power distribution systems, the 2-pole 63A Miniature Circuit Breaker (MCB) is capable of rapidly and automatically interrupting the circuit in the event of overload or short-circuit faults, thereby effectively mitigating safety hazards such as equipment damage and fire.
Our 2‑pole 63A miniature circuit breaker features Class‑A flame‑retardant housing, effectively preventing fire risks under high‑temperature conditions.
The tripping characteristics of miniature circuit breakers are categorized into three curves—B, C, and D—to suit various application scenarios: Type B is primarily used for residential power distribution; Type C is suitable for small motors and commercial electrical systems; and Type D is predominantly applied in industrial environments.
Our 2P 63A miniature circuit breakers are widely applied in residential lighting, main power switches, public buildings, industrial distribution rooms, new energy projects, public service facilities and office buildings.
CNTN Electric’s 20 amps miniature circuit breaker is very compact in size, making it easy to install. Its overall dimensions are only 7.7*6.5*1.7 cm.
CNTN Electric manufactures 2 Pole 63A MCB with high reliability and quality. The rated current (A) of these miniature circuit breakers ranges from 6 A to 63 A, and the rated voltage is 5-220 VAC.
If you would like to get the latest price for this 2 Pole 63A MCB, please fill out the form at the bottom to get our quote!

Ordering Instruction:


type	Standart		EC/EN 60898-1
Electrical features	Rated current In	A	1,2,4,6,10,16,20,25,32,40,50,63
	Poles	P	1,2,3,4
	Rated voltage Ue	V	230/400
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	45,006,000
	Rated impulse withstand voltage(1.2/50)Uimp	V	4500(80)/6000(1-63)
	Dielectric test voltage at ind.Freq.for 1min	Kv	2
	Pollution degree		2
	Thermo-magnetic release characteristic		BCD
Mechanical features	Electrical life		8000
	Mechanical life		20000
	Protection degree		IP20
	Reference temperature for setting of thermai element	℃	30
	Ambient temperature	℃	-5~+40
	(with daily average≤35℃)
	Storage temperature	℃	-25~+70
Installatior	Terminal connection type		Cable/Pin-type busbar
	Terminal size top /bottom for cable	mm²	25
		AWG	18-3
	Terminal size top /bottom for busbar	mm	25
		AWG	18-3
	Tightening torque	N*m	2
		In-Ibs	18
	Mounting		On DIN rail EN 60715(35mm)by means of fast clip

	Connection		From top or bottor
